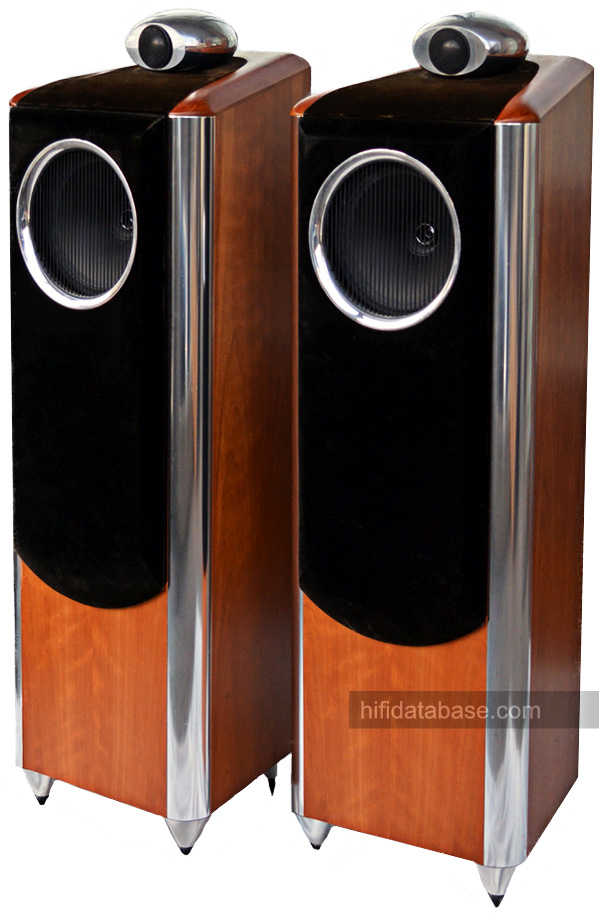

Click to enlarge
|
Details
| Enclosure Type: | 2 way twin port reflex |
| Recommended Amplifier: | 50 - 200 Watts |
| Power Handling (RMS): | 130 Watts |
| Frequency Response: | 38Hz - 54kHz |
| Crossover Frequency: | 1.2kHz, SuperTweeter 14kHz |
| Crossover Type: | Bi-wired, hard-wired passive, low loss, 3rd order low pass, 1st order high pass |
| Sensitivity: | 91dB |
| Nominal Impedance: | 6 Ohms |
| Internal Volume: | 67 Litres |
| Drivers: | SuperTweeter™ 1 x 25mm (1.00") 25 micron titanium dome, with neodymium magnet system
Dual Concentric™ High Frequency 1 x 25mm (1.00") 50-micron aluminium dome with Tulip WaveGuide™
Dual Concentric™ Low Frequency 1 x 250mm (10.00") paper pulp cone with a twin roll impregnated fabric surround
|
| Dimensions: | 350 x 1015 x 370mm (Width x Height x Depth)
|
| Weight: | 32kg / 70.4lbs
|
| Year: | 2008
|
| Rating: |  |
| Votes: | 0 |
| Views: | 11,920 |
| Reviews: | 0 |
| Website: | Tannoy |
